système de stockage de l'énergie de ménage

stackable 51.2V 100Ah Lifepo4 Battery Long Lasting Rechargeable Battery Suitable for Electric Vehicles Solar Energy and Backup Power Systems

Name: stackable 51.2V 100Ah Lifepo4 Battery Long Lasting Rechargeable Battery Suitable for Electric Vehicles Solar Energy and Backup Power Systems
Brand: Zhejiang GBS Energy Co., Ltd.
SKU: GBSFP51100T
Price: 480.00 USD
Availability: InStock

Nom De Marque:	GBS
Numéro De Modèle:	GBSFP51100T
Nombre De Pièces:	1 pièces
Prix:	480.00 USD
Conditions De Paiement:	LC, D/A, D/P, T/T
Capacité à Fournir:	10000 PC par mois

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

CE, IEC, UN38.3 etc

Capacité de la batterie:

100AH

Tension:

51,2 V

Protection BMS:

Inclus, avec communication RS232 / 485

Cellule:

Cellule de batterie LifePO4

Garantie:

5 ans

Taux de décharge standard:

Communication:

CAN / RS485 / RS232 / Contact sec

Emballer:

carton spécial pour les marchandises dangereuses

Forme:

Prismatique

Durée de vie:

Plus de 6000 fois

Détails d'emballage:

Caisses en bois

Capacité d'approvisionnement:

10000 PC par mois

Mettre en évidence:

stackable 51.2V 100Ah Lifepo4 battery

long lasting rechargeable battery for electric vehicles

solar energy backup power system battery

Description de produit

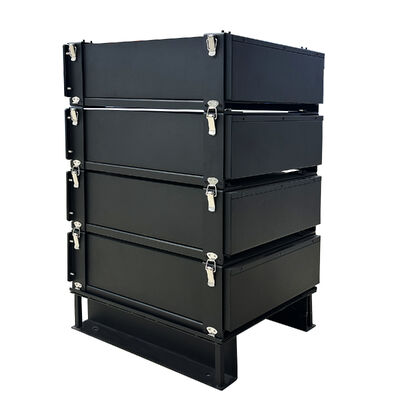

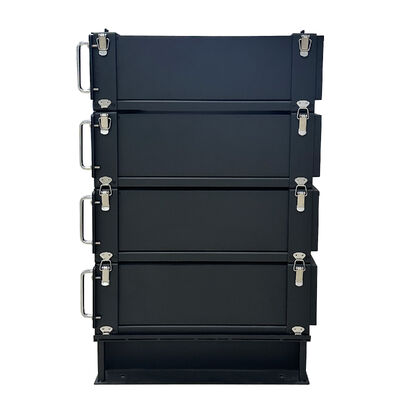

Stackable 51.2V 100Ah LiFePO4 Battery

Stackable 100Ah Prismatic Lithium Battery 51.2V Pack with CAN/RS485/RS232 communication interfaces, designed for long-lasting performance in electric vehicles, solar energy systems, and backup power applications.

Technical Parameters

Model	16S
Anode Material	LiFePO4
Nominal Voltage	51.2Vdc
Cycle Life	>6000 cycles
Charge Voltage	56.8Vdc
Cutoff Discharge Voltage	40.5Vdc
Max Charge/Discharge Current	100A / 100A @25ºC
Installation Method	Rack mounted
Weight	40kg
Dimensions (W×D×H)	442mm × 415mm × 133mm
Self Discharge @25ºC	<5% in 90-day storage
Communication	RS485, CAN
Protection Functions	Over temperature, over current, short circuit, over discharge, etc.
Operating Temperature	Charge: 0ºC ~ 65ºC; Discharge: -20ºC ~ 65ºC
Relative Humidity	5% ~ 95%
Altitude	0 ~ 3600m

Key Features

State monitoring: Supports voltage, temperature, and overall voltage/current detection with SOC and SOH calculation
Integrated BMS and bidirectional DC/DC: Supports mixing and matching of different batteries
Parallel power expansion: Supports up to 32 sets in parallel with maximum power ≤ 24kW
Alarm management: Supports abnormal alarms for overvoltage, undervoltage, overcurrent, and temperature extremes
Comprehensive protection: Overvoltage, undervoltage, overcurrent, short circuit, temperature, cell failure, and hardware failure protection
Intelligent anti-theft function with sound and light alarms
Real-time cell balancing function
Information reporting via CAN/RS485 interface
Smart design with Bluetooth APP, wireless 4G communication, and gyroscope interfaces
Easy maintenance with multiple activation methods and forced power-off functions
Maintenance-free operation during use
Long lifespan: 2-3 times longer than ordinary lead-acid batteries

Working Modes

This product features bidirectional DC/DC power conversion for charging and discharging. In parallel and mixed battery scenarios, each pack monitors external bus voltage and adaptively adjusts charging/discharging status through CAN communication.

Discharge Output Modes

Mode 1: Self-managed Constant Voltage Discharge
Mode 2: Power Management Constant Voltage Discharge
Mode 3: Battery Characteristic Discharge

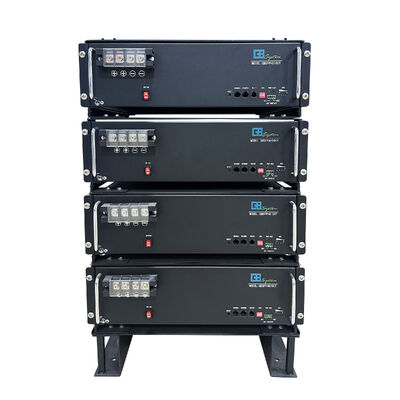

Interface Specifications

No.	Name	Screen Printing	Function Description
1	Protective Grounding	GND	M6 Screw
2	Dry Contact Output	DO1 DO2	Alarm dry contact point, configurable
3	Dry Contact Input	DI	Boost mode control and wake-up
4	Reserved Extension Interface	RESERVED	Reserved extended serial port
5	Communication Interface	COM_IN	Used for information reporting and cascading communication. Uses double-layer RJ45 terminals.
6	Communication Output	COM_OUT	Communication output interface
7	Indicator Lights	RUN, ALM, CHG, DCHG, SOC	Run, Alarm, Charge, Discharge, and State of Charge indicators
8	Manual Control	MANUAL ON/OFF	Maintenance button (contact button)
9	Power Terminals	+, -	Positive and negative battery interfaces with M6 screws. Recommended wire diameter: 25mm² (minimum 16mm²). Torque requirement: 4 N·m

Support and Services

Our technical support team provides expert guidance on installation, maintenance, and troubleshooting to ensure optimal system operation. We offer regular maintenance checks, performance monitoring, and battery capacity assessments to maximize your system's performance.

Packing and Shipping

Product Packaging: Each battery is individually wrapped in protective material and placed in sturdy cardboard boxes for safe delivery.

Shipping: Orders are processed and shipped within 1-2 business days. Standard and expedited shipping options available with tracking numbers provided.

Frequently Asked Questions

What is the brand name of the energy storage batteries product?

The brand name is GBS.

What is the model number of the energy storage batteries?

The model number is GBSFP51100T.

Where is the batteries product manufactured?

The product is manufactured in China.

Are the GBS energy storage batteries suitable for ESS?

Yes, the GBSFP51100T model is suitable for home Energy Storage Systems (ESS).
